Cloud Authorization Demo

Here we demo copying an object from an AWS S3 bucket to a Galaxy history. For this:

  • we copy the ENCFF001SNN.broadPeak.gz object from ENCODE's AWS S3 bucket;
  • to gain access to the ENCFF001SNN.broadPeak.gz object, we use a role created by the Galaxy project for the purpose of this demo;
  • we use a pre-bake branch of Galaxy with all the necessary configuration pre-setup.

For this demo, we first start a local Galaxy instance, then login to that instance, and define a cloud authorization record, which we will then use to copy the ENCFF001SNN.broadPeak.gz object.

You may take the following steps:

  1. Clone a pre-baked instance of Galaxy by running the following command in your terminal:

    mkdir ~/role_demo && cd ~/role_demo && git clone -b aws_demo_role https://github.com/vjalili/galaxy .

  2. Start Galaxy by running the following command:

    ./run.sh


    wait until you see the following message:

    serving on http://127.0.0.1:8080

  3. Login to your Galaxy instance by clicking on the Login or Register button, and then on the Sign in with Google button:

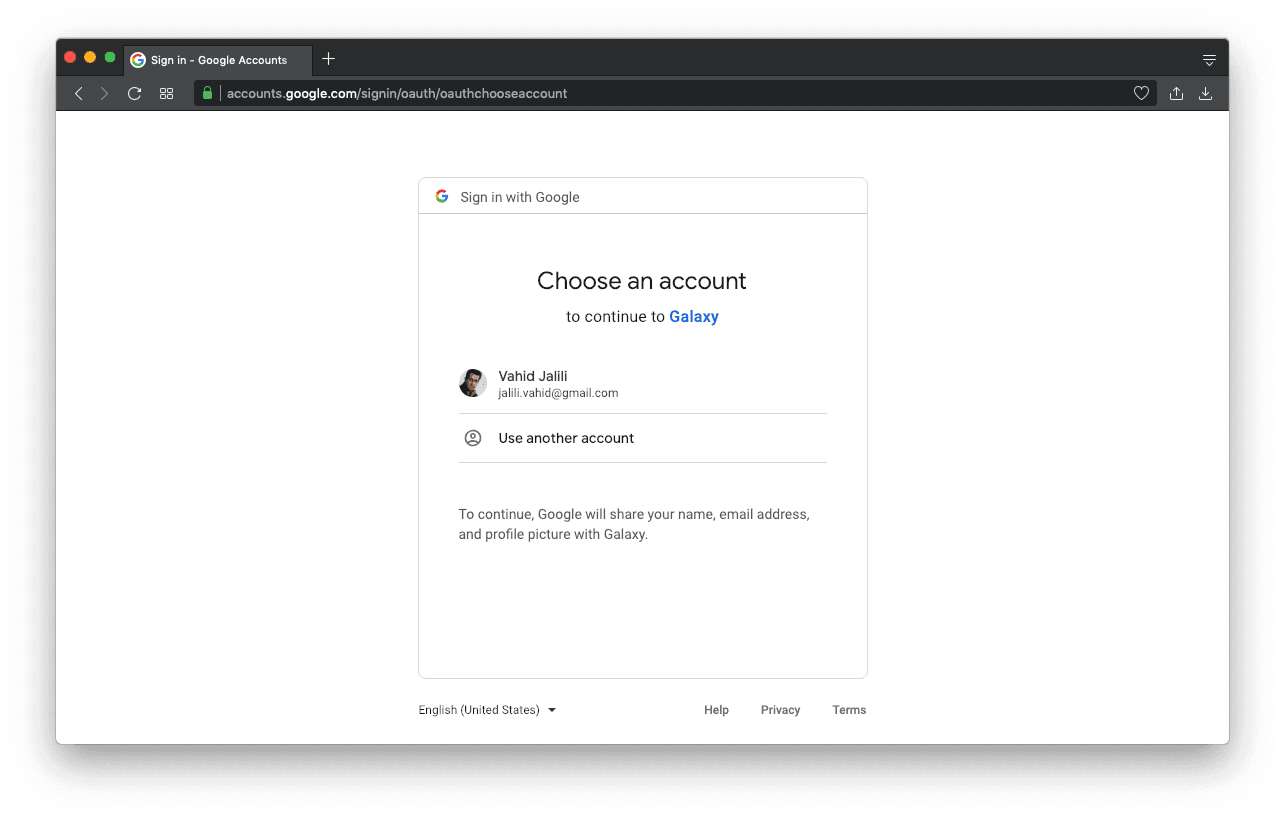

  4. Enter your Google credentials if required:

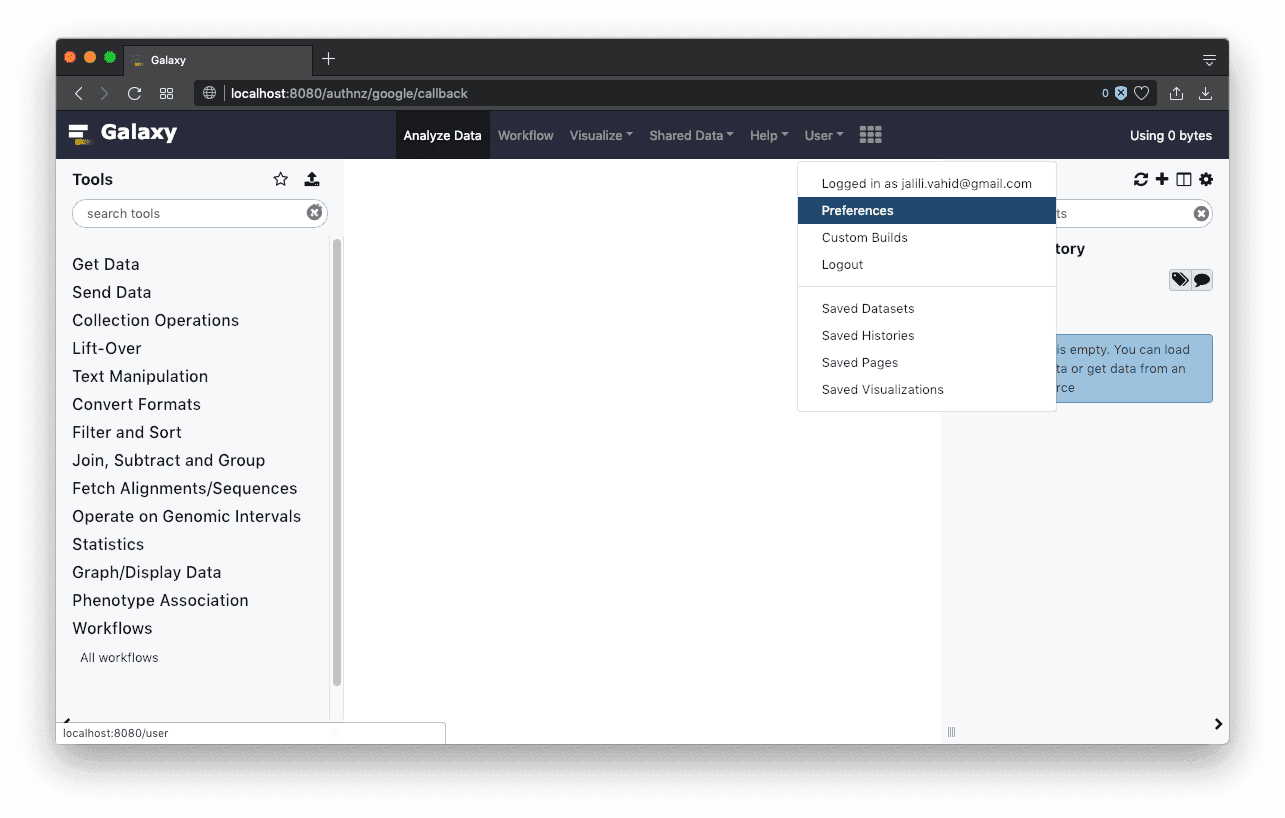

  5. Having signed-in with your Google credentials, you will be auto-redirected back to your local installation of Galaxy; then click on the User button and choose the Preferences menu item:

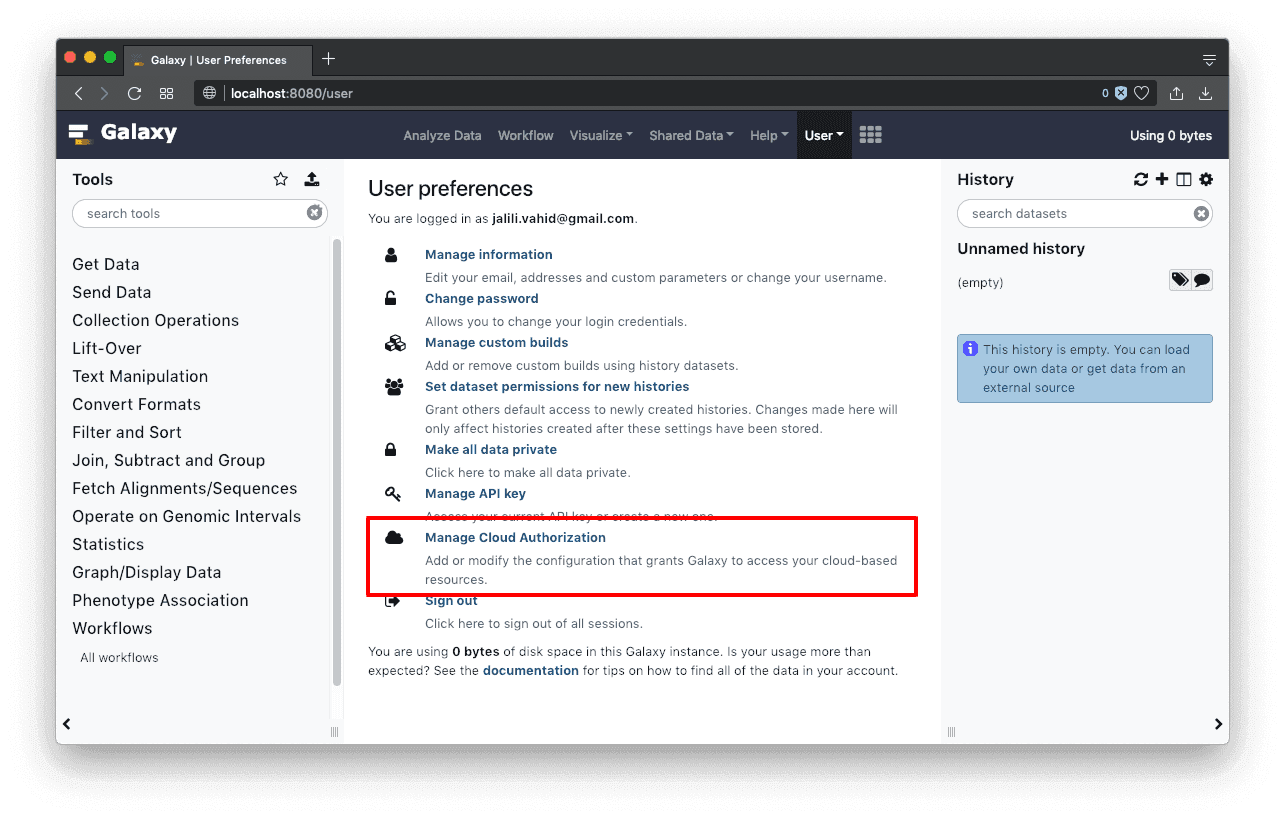

  6. From the preferences menu, choose the Manage Cloud Authorization option:

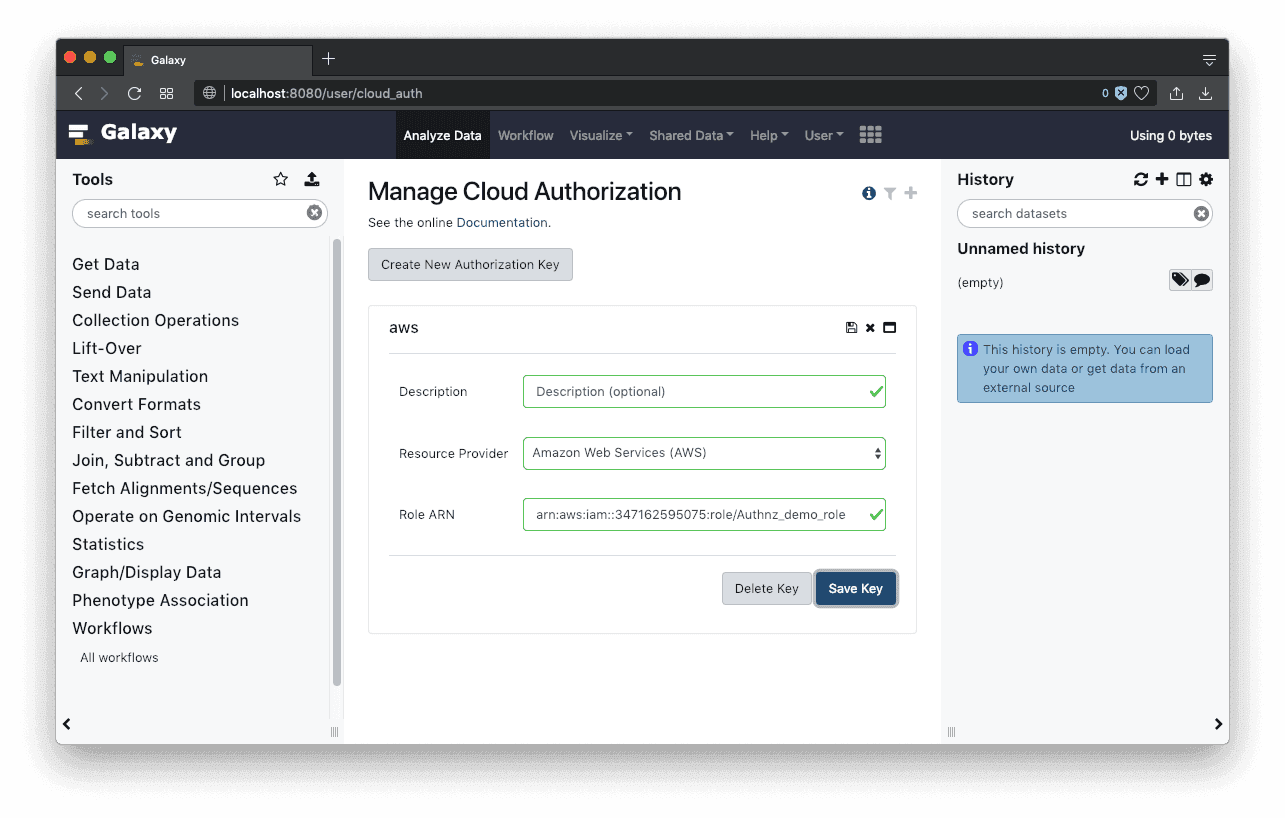

  7. Click on the Create New Authorization Key, and enter the following value for the Role ARN field, and click on the Save Key button.

    arn:aws:iam::347162595075:role/Authnz_demo_role



  8. Click on the User button, and choose Preferences, and from the "User Preferences" menu, choose Manage API key:

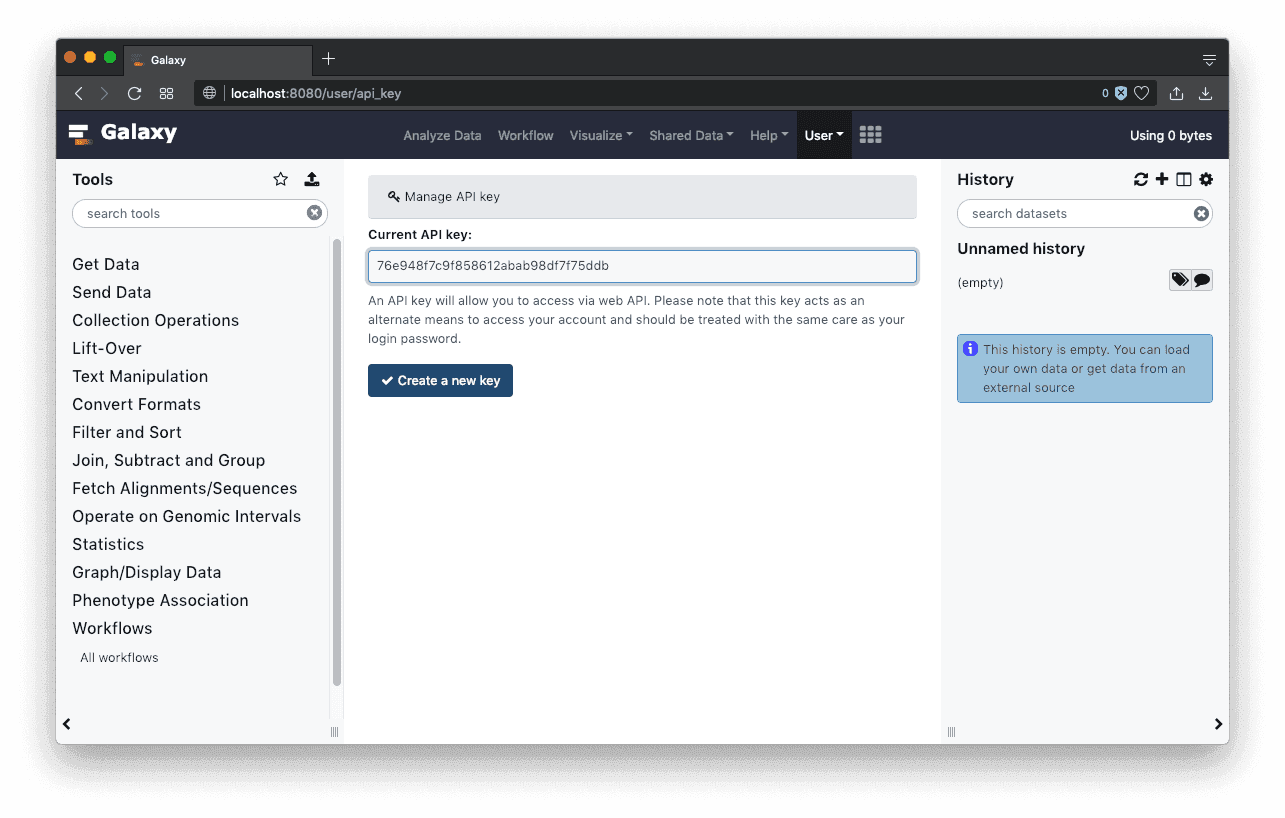

  9. Click on the Create a new key, and copy API key:


  10. Keep the terminal running your Galaxy open, and open a new terminal and run the following command where [API KEY] is your API obtained at previous step:

    python get_object.py [API KEY]


    Running this command will return a list as the following which indicates that a Galaxy has create a job to download the ENCFF001SNN.broadPeak.gz object:

    vahid$ python get_object.py 76e948f7c9f858612abab98df7f75ddb
    [{u'update_time': u'2019-04-26T23:30:42.061336', u'uuid': u'a3404949-dbf3-4657-999d-11837e5c7f3f', u'deleted': False, u'id': u'1cd8e2f6b131e891', u'purgable': True, u'total_size': 0, u'state': u'queued', u'create_time': u'2019-04-26T23:30:42.002358', u'file_size': 0, u'purged': False}]

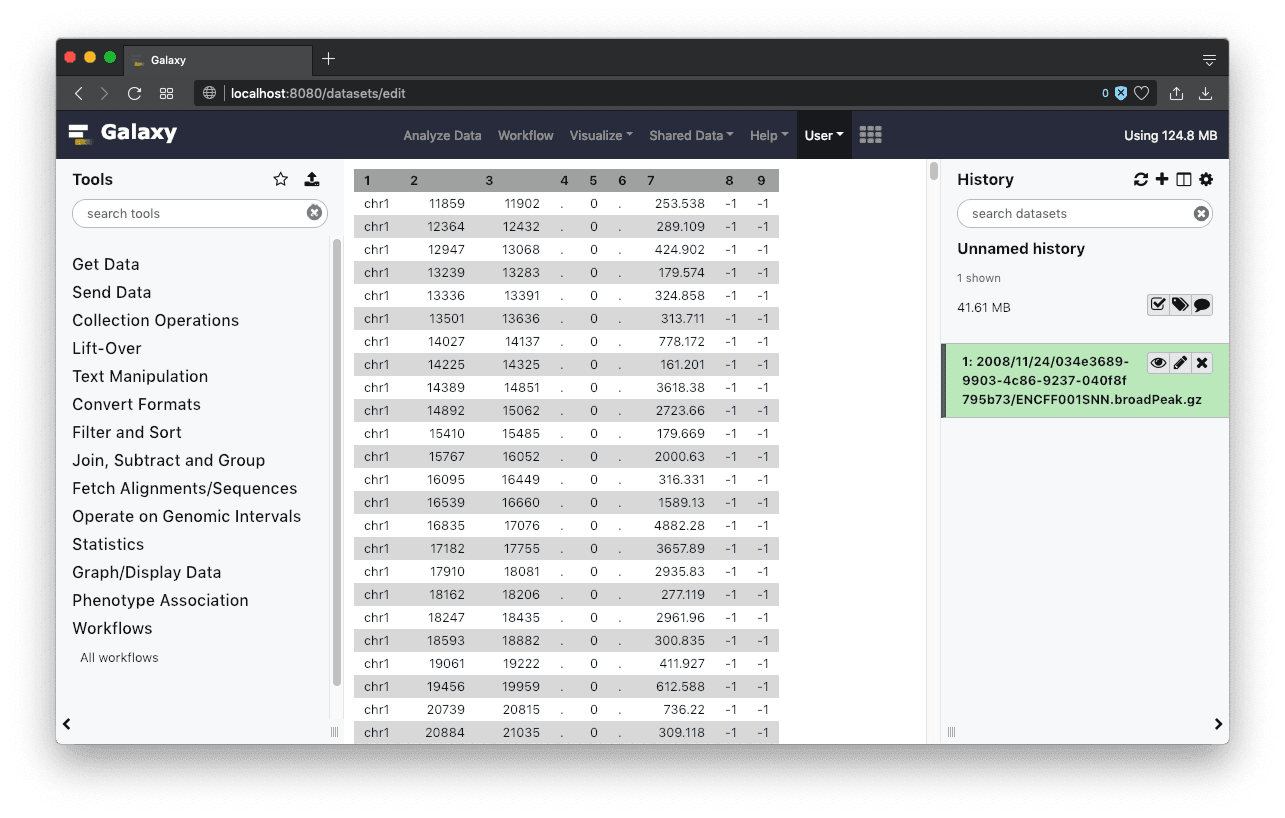

  11. At this point Galaxy has downloaded the object to your history:


Remarks

The policy of the Authnz_demo_role role that we set this Galaxy instance to assume, is defined as the following:

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "VisualEditor0",
            "Effect": "Allow",
            "Action": "s3:GetObject",
            "Resource": "arn:aws:s3:::encode-public/2008/11/24/034e3689-9903-4c86-9237-040f8f795b73/ENCFF001SNN.broadPeak.gz"
        }
    ]
}

Accordingly, this role grants the local Galaxy instance with read access ("Action": "s3:GetObject") to only one object, i.e., arn:aws:s3:::encode-public/2008/11/24/034e3689-9903-4c86-9237-040f8f795b73/ENCFF001SNN.broadPeak.gz

Additionally, the trust relation of this role is defined as the following:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {
        "Federated": "accounts.google.com"
      },
      "Action": "sts:AssumeRoleWithWebIdentity",
      "Condition": {
        "StringEquals": {
          "accounts.google.com:aud": "893677542423-4t761afe33k3o9mu56u6p6p1ctk8o88f.apps.googleusercontent.com"
        }
      }
    }
  ]
}

Accordingly, only the Galaxy instance with the OpenID Connect Audience ID 893677542423-4t761afe33k3o9mu56u6p6p1ctk8o88f.apps.googleusercontent.com that is registered with Google ("Federated": "accounts.google.com") can assume this role. See this page on how to register your Galaxy; however, for the purpose of this demo, the pre-baked Galaxy that you cloned is already registered with Google.
